VERTICAL TYPE CARBONIZATION FURNACE
Product Description

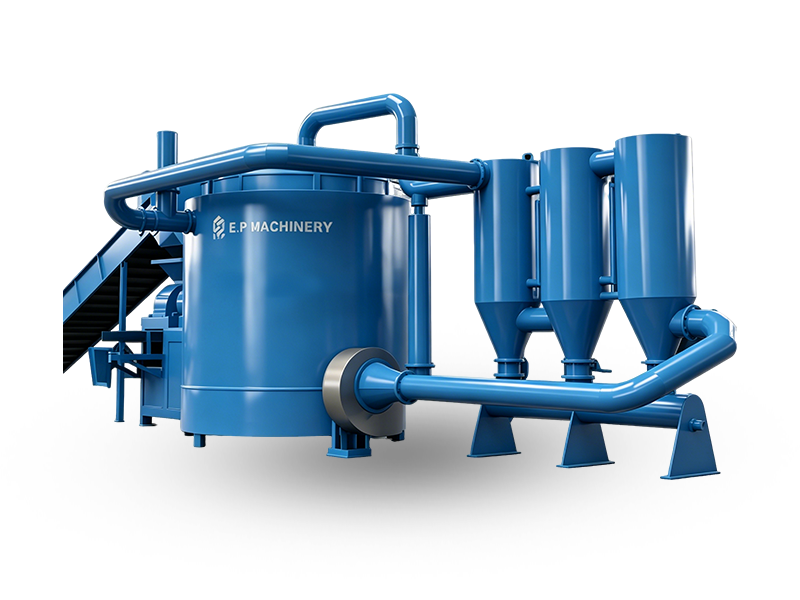

The hoist-type carbonization furnace is an efficient, eco-friendly charcoal maker; its vertical multi-liner design enables continuous, fast carbonization, recycles pyrolysis gas for self-heating to reduce energy consumption and emissions, and comes with a flue gas treatment system for smokeless operation. Featuring high charcoal yield, stable product quality, simple operation and broad biomass compatibility, it is perfectly suited for modern charcoal production.
Features

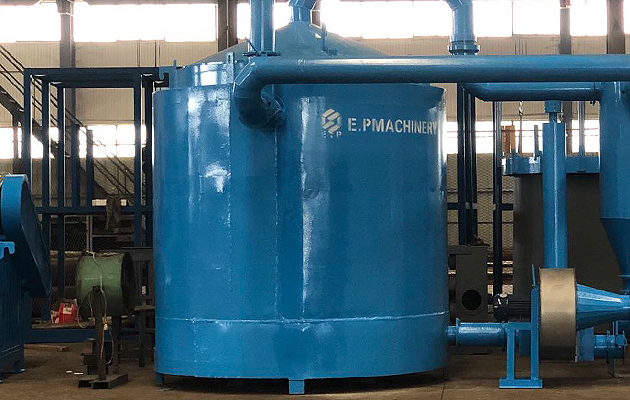

Furnace Body
Sealed core cylinder for carbonization reactions.

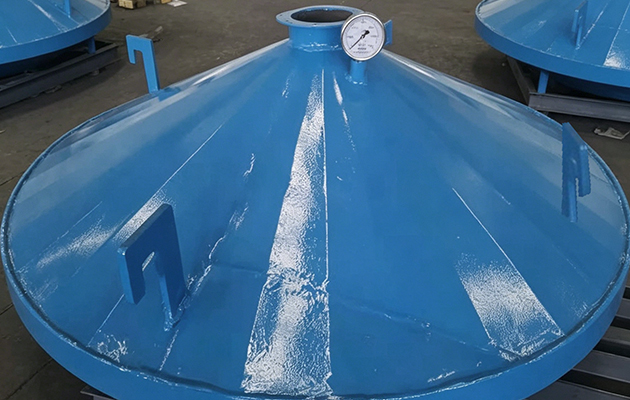

Furnace Cover
Tightly sealed furnace body maintains oxygen-free carbonization conditions.

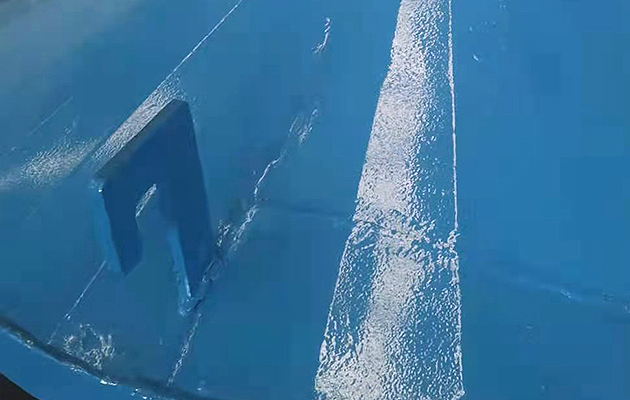

Lifting Mechanism
The whole furnace can be lifted by truck cranes or overhead cranes, facilitating fast loading, unloading and transfer.

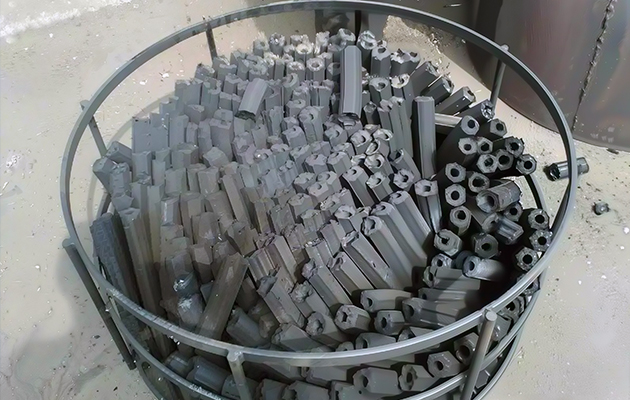

Feed Basket
Suitable for wood scraps, machine-made sticks, nut shells and other biomass feedstock. The integrated basket charging design enables fast feeding and uniform charcoal discharge.

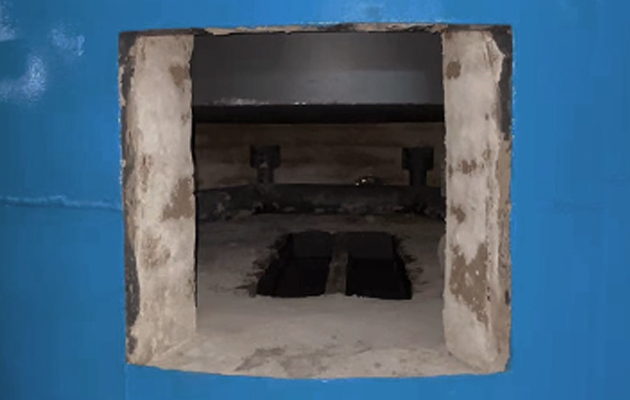

Combustion Chamber
It burns wood gas, firewood, fuel gas and more to evenly heat the furnace for carbonization.

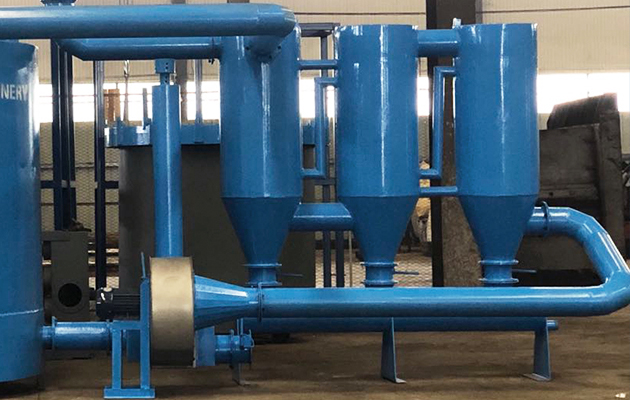

Flue Gas Purification
Smoke, dust & odor filtration meets eco emission standards, suitable for strictly regulated zones.
Specifications
| Model | Power (kw) | Capacity (kg/h) | Diameter (m) | Weight (t) |
|---|---|---|---|---|
| HSTHL-01 | 4 | 300 - 450 | 1.2 | 4.2 |
| HSTHL-02 | 4 | 500 - 700 | 1.5 | 5.3 |
| HSTHL-03 | 4 | 600 - 800 | 1.8 | 6.2 |
